Floor Plan - Tata New Haven Bahadurgarh

2 BHK
2 BHK Type 1 floor plan, 73.88 sq.mt. carpet area, Tata New Haven Bahadurgarh
2 BHK Type 1
Carpet Area : 73.88 Sq.Mt.
Balcony Area : 12.48 Sq.Mt.
2 BHK Type 2 floor plan, 73.09 sq.mt. carpet area, Tata New Haven Bahadurgarh
2 BHK Type 2
Carpet Area : 73.09 Sq.Mt.
Balcony Area : 13.34 Sq.Mt.
2 BHK Type 3 floor plan, 82.93 sq.mt. carpet area, Tata New Haven Bahadurgarh
2 BHK Type 3
Carpet Area : 82.93 Sq.Mt.
Balcony Area : 18.13 Sq.Mt.
3 BHK
3 BHK floor plan, 106.39 sq.mt. carpet area, Tata New Haven Bahadurgarh
3 BHK
Carpet Area : 106.39 Sq.Mt.
Balcony Area : 20.65 Sq.Mt.
3 BHK corner unit floor plan, 106.39 sq.mt. carpet area, Tata New Haven Bahadurgarh
3 BHK Corner Unit
Carpet Area : 106.39 Sq.Mt.
Balcony Area : 20.65 Sq.Mt.
Cluster Plan
Stilt or ground floor cluster plan for Towers 5, 6 and 7, Tata New Haven Bahadurgarh
Stilt or Ground Floor
Tower 5,6,7

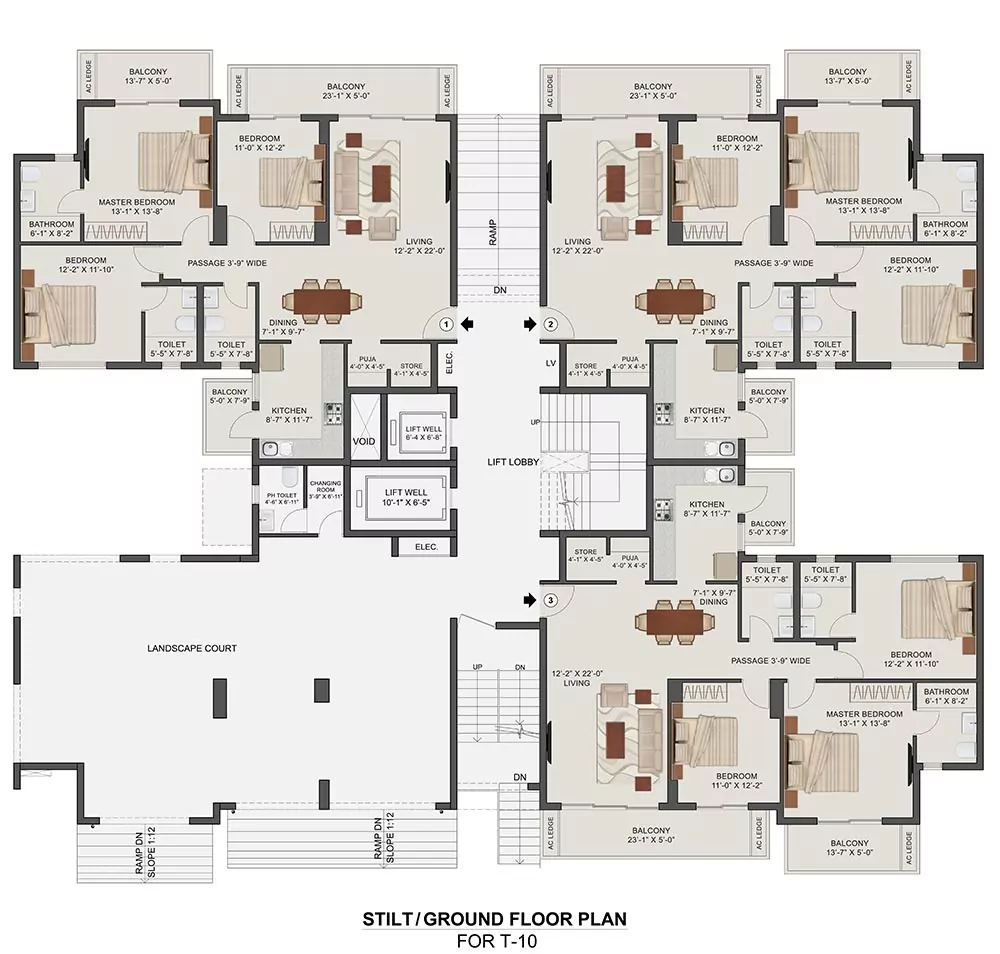

Stilt or ground floor cluster plan for Tower 10, Tata New Haven Bahadurgarh
Stilt or Ground Floor
Tower 10

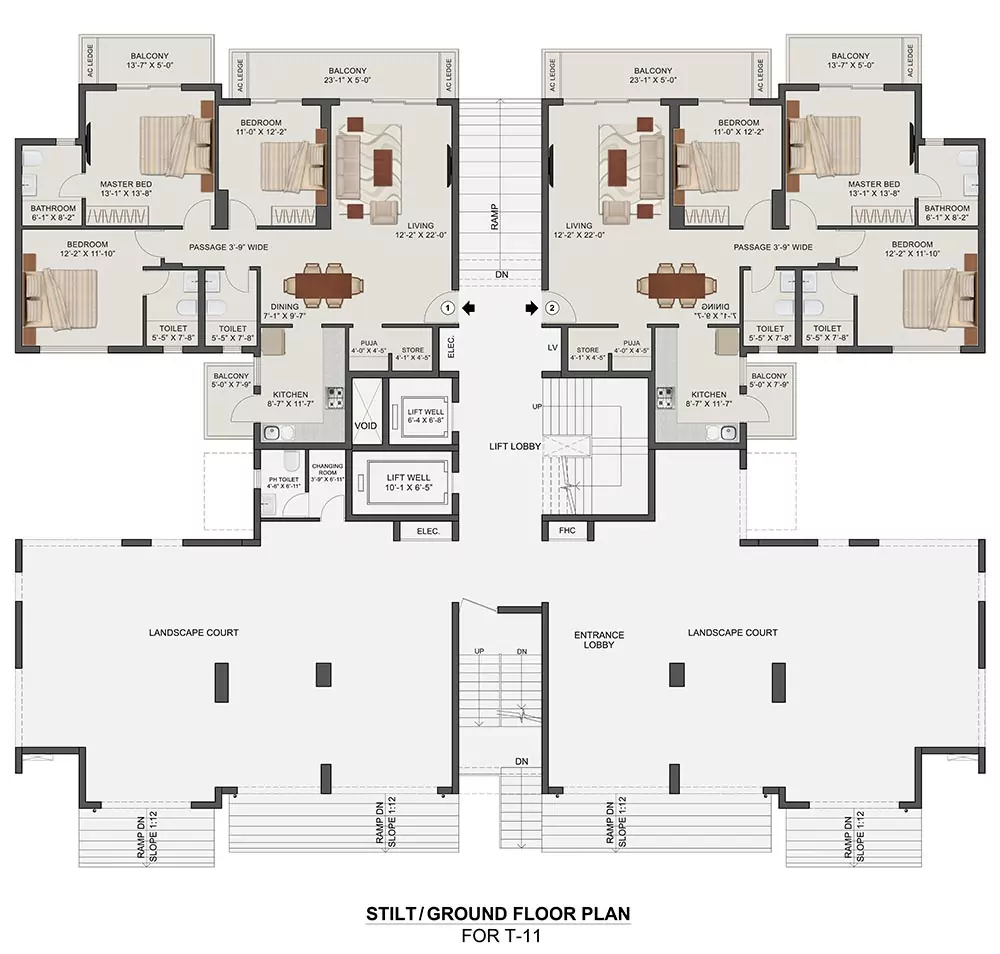

Stilt or ground floor cluster plan for Tower 11, Tata New Haven Bahadurgarh
Stilt or Ground Floor
Tower 11

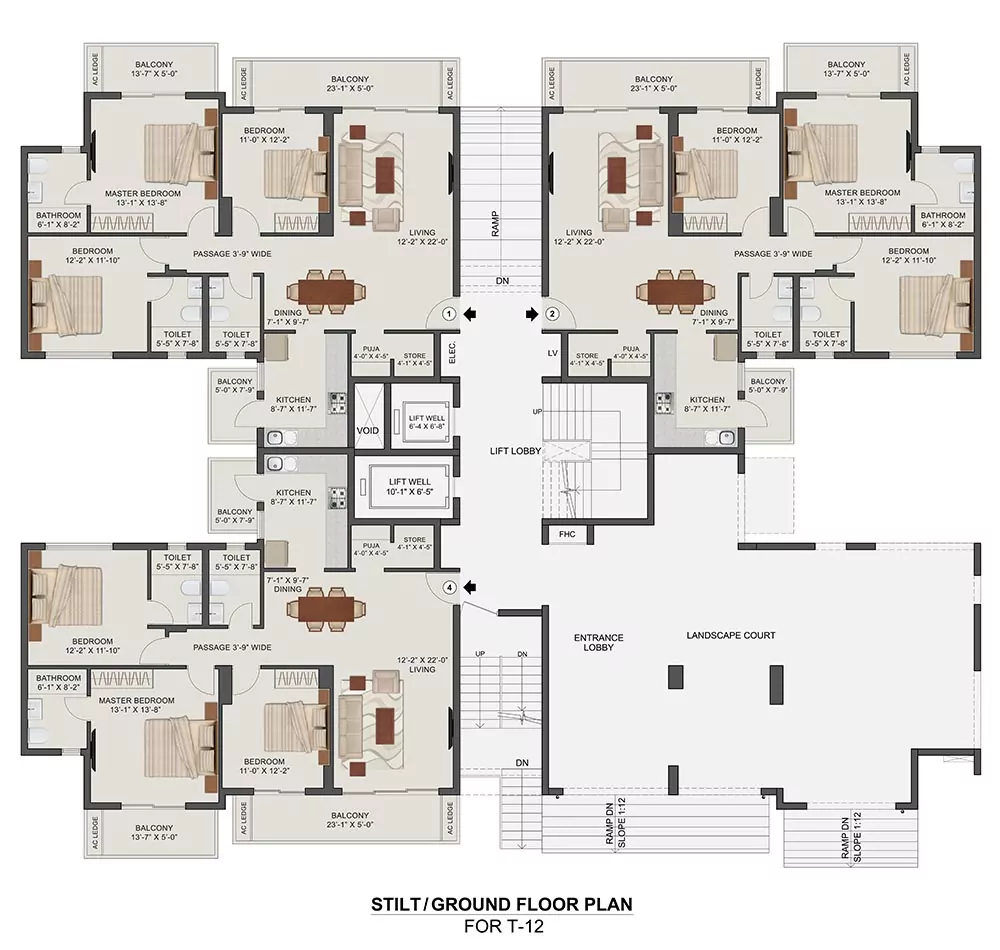

Stilt or ground floor cluster plan for Tower 12, Tata New Haven Bahadurgarh
Stilt or Ground Floor
Tower 12

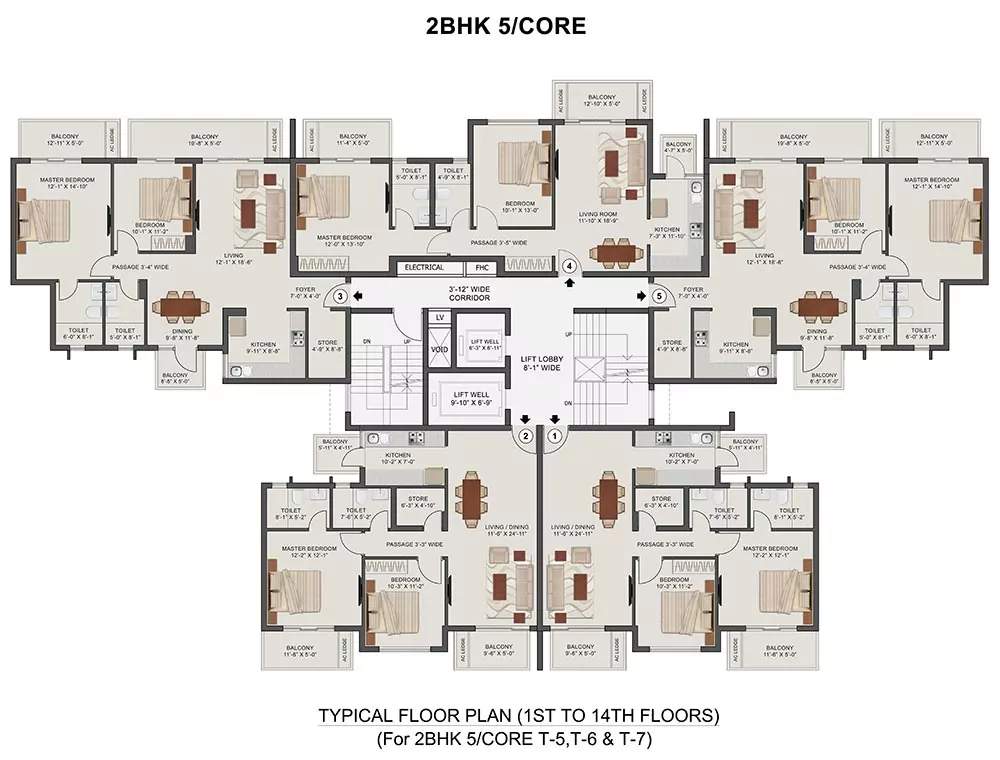

Typical 1st to 14th floor cluster plan for Towers 5, 6 and 7, Tata New Haven Bahadurgarh
Typical Floor Plan
Tower 5, 6, 7

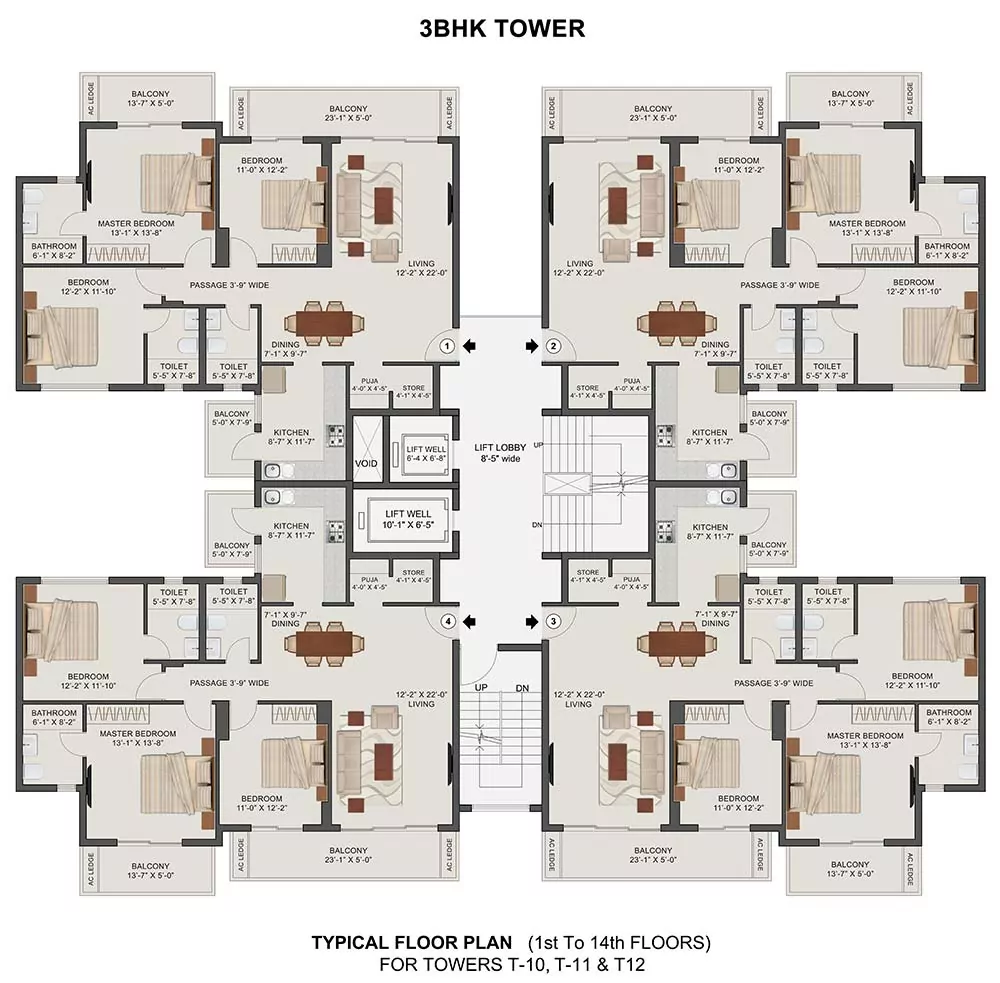

Typical 1st to 14th floor cluster plan for Towers 10, 11 and 12, Tata New Haven Bahadurgarh
Typical Floor Plan
Tower 10, 11, 12
